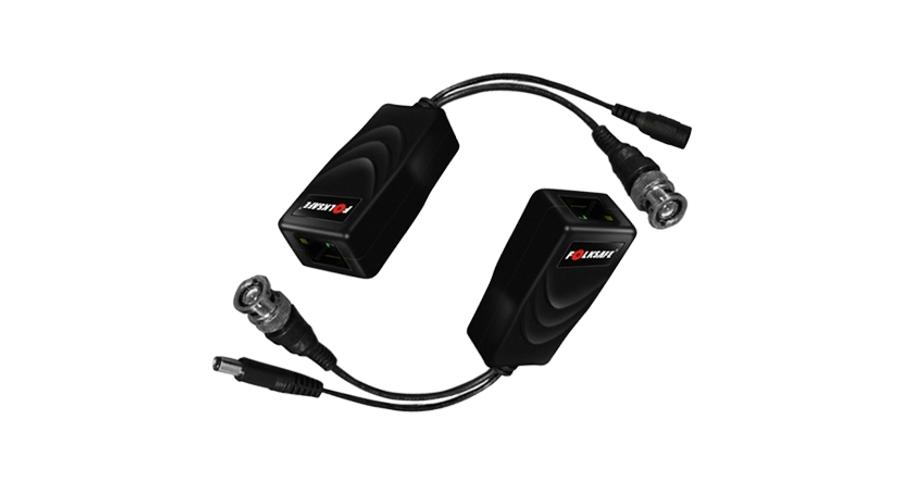

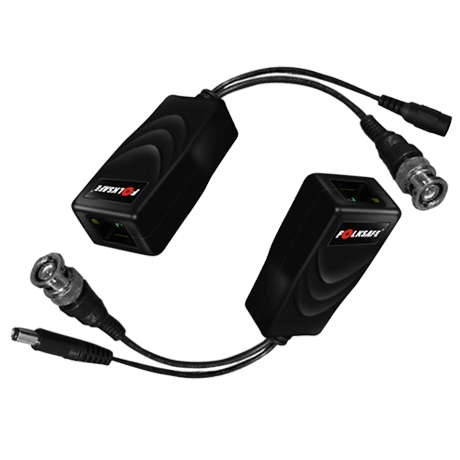

Folksafe FS-HDP4301VP-MF 1 CH passzív HD-CVI/TVI/AHDvideo balun tápcsatlakozóval
Ár:
5.629 Ft
(4.432 Ft + ÁFA)
| Gyártó: |
|
| Gyártó cikkszám: | FS-HDP4301VP-MF |
| Elérhetőség: | Raktáron |
Csatolt dokumentumok
Leírás és Paraméterek
| Technikai ismertető | |
| Model | FS-HD4301VP |
| Product Name | Single Channel HD Video & Power Transmitter & Receiver |
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video | |
| Video Format | HD-TVI/CVI/AHD/CVBS |
| Operating Frequency | DC to 71MHz |
| Common-mode/Differential-mode rejection | 15KHz to 71MHz 60 dB typ |
| Impedance | Coax:Male BNC 75Ω unbalanced |
| UTP:RJ45 100Ω balanced | |
| Wire Type | |
| Attenuation | 1.5 dB typ Max |
| Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type | UTP cat 5e/6 |
| Impedance | 100 ± 20 ohms |
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance | 19 pF/ft max (62 pF/m max) |
| Power | |
| Power Input | 12V/24V,DC/AC |
| Power transmission | 12V/24V,DC/AC, via UTP cat5e/6. please refer to “power distance chart” |
| Connector | |
| Video input/output | Male BNC connector |
| Video input/output | RJ45 Jack |
| Protection | |
| Surge Protection | renewable solid state surge protection |
| Video Input | 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
| Video Output | 2KV(differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions(L*W*H) | 60.4*29*20.4mm (BNC connector & cable excluded) |
| Net Weight | 60g |
| Environmental | |
| Operating Temperature | -20º ~ 70º C |
| Relative Humidity | 0~95% (non-condensing) |
| Storage Temperature | -40º ~ 150º C |
