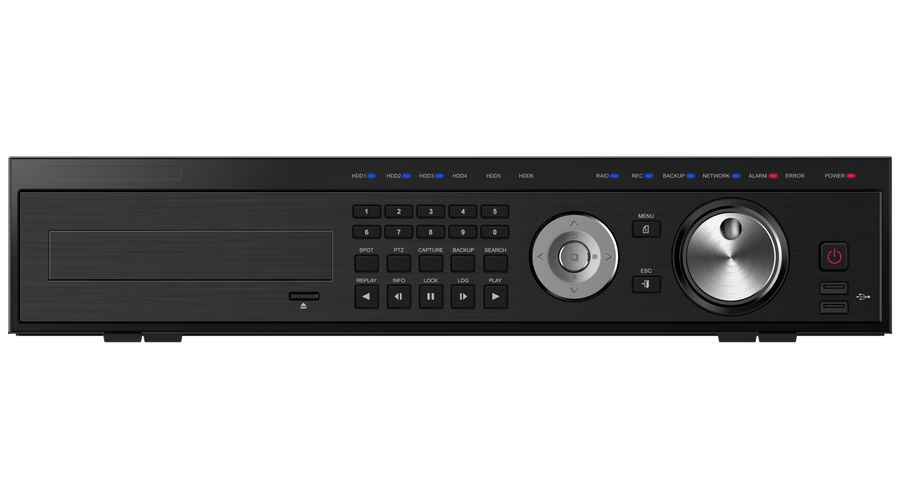

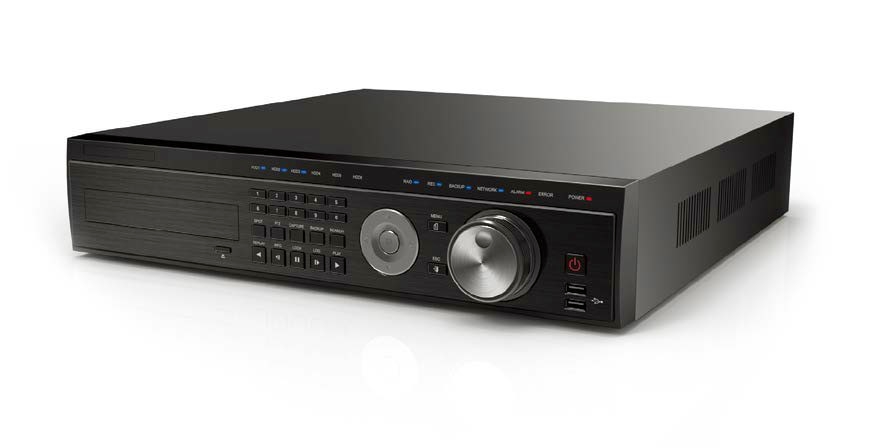

Rifatron HD7-1600 16 csatornás UHD hálózati video rögzítő (NVR)
Ár:
327.537 Ft
(257.903 Ft + ÁFA)
| Gyártó: |
|
| Gyártó cikkszám: | HD7-1600 |
| Elérhetőség: | Rendelhető |
További képek
Csatolt dokumentumok
Leírás és Paraméterek
| Rögzítő technológia | IP |
| IP csatornaszám | 16 CH |
| Rögzítő felbontás IP | 8 Megapixel |
| HDD kapacitás | 6 db |
| RAID funkciók | Opcionálisan rendelhető |
| Méret | 19" 2U |
| Tápellátás | 230Vac belső tápegység |
| Model No. | HD7-1608 |
| System | OS:Embedded Linux |
| Language:Chinese,Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish, Arabic | |
| Time Accuracy:5ppm (12.5sec/month) | |
| Time Sync.:NTP, GMT, DST | |
| User:15 Users (Admin., User1 ~ User14) | |
| Access:Front button, Mouse, Remocon, Network, Key controller | |
| Hexaplex:Live monitoring, Recording, Playback, Backup, Network, Setup | |
| Upgrade:USB2.0 Memory stick, Network | |
| Camera | IP Camera:ONVIF |
| Video | System:NTSC / PAL |
| Input:16ch | |
| Display Rate:Max. 4K | |
| Output Interface:HD-MI, VGA, BNC | |
| Spot:HD-TVI spot, SD spot | |
| Audio | Input Interface:16 IPC |
| Output Interface:HD-MI | |
| Video Recording | Compression:H.265,H.264 |
| Speed:Max.30fps/ch | |
| Resolution:Max.4MP | |
| Mode:Schedule | |
| Event:Motion, Local Sensor | |
| Bit Rate:Max. 8Mpbs/ch | |
| Audio Recording | Compression:G.711u |
| Audio Sampling Rate:Depends on IPC | |
| Audio Bit Rate:Depends on IPC | |
| Playback | Search:Go to first rec. time, Go to last rec. time, |
| Go to last search time, | |
| Calendar, Log viewer, Smart search, | |
| Multi-time & day search, Event search | |
| Mode:Event only playback, Backward, | |
| Pause, Frame by frame, Speed up (x1 ~ x32, x300) | |
| Network | Interface:RJ45 (Ethernet 10/100/1G) x 2 |
| Compression:H.265 | |
| Speed:Max. 2MP 15fps/ch | |
| Resolution:Max. 2MP(1080p) | |
| Backup | Interface:USB2.0, Network |
| Format:Video clip (Backup viewer), JPEG Still Image | |
| Log list, Setup data | |
| Booting | Live:40sec |
| Recording:50sec | |
| Alarm | Post-Alarm:5sec~5min |
| Motion Grid:22 x15 | |
| Alarm Action:E-mail, Event Popup, Buzzer, Relay, | |
| PTZ Preset,Remote CMS, Front LED | |
| Display | HD-MI:4K, FHD, SxGA, XGA |
| VGA:Full HD, SxGA, XGA | |
| TV:SDTV(720x480) | |
| Mode:16/9/4/1/SEQ/BIG - LIVE, 16/9/4/1 - P.B | |
| Camera Title Name:English:20 characters, Chinese, Japanese, Korean:10 characters | |
| External Interface | PTZ / Keyboard:2 RS485 - Terminal Block |
| ATM/POS:RS232C - Terminal Block, Ethernet POS | |
| Storage | Primary:6 HDD |
| External:4 eSATA | |
| Features | POE:8 PoE |
| Jog-shuttle:Yes | |
| RTSP:Yes | |
| Digital Zoom:x1 ~ x16 | |
| Watermarking:Yes | |
| Detection / Search:Motion, Sensor | |
| Fan Fail:Yes | |
| E-mail:5 Users | |
| Capture:4K | |
| DDNS, DHCP, UPNP:Yes | |
| CMS, VMS, RMS:Windows | |
| Smart Phone (3G):Android, iPhone, iPad | |
| Mac Viewer:Apple Mac OS | |
| Electrical | Input Voltage (DVR):AC 100V ~ 240V, 50/60Hz |
| Input Voltage (PoE)):Embedded | |
| Camera Power Output:Max. 30 W per channel, Up to Total 150W | |
| General | Power Supply:90~250V, 50/60Hz |
| Operating Temp.:5 ~ 40 OC | |
| Humidity:10 ~ 80% | |
| Weight w/o HDD:8Kg | |

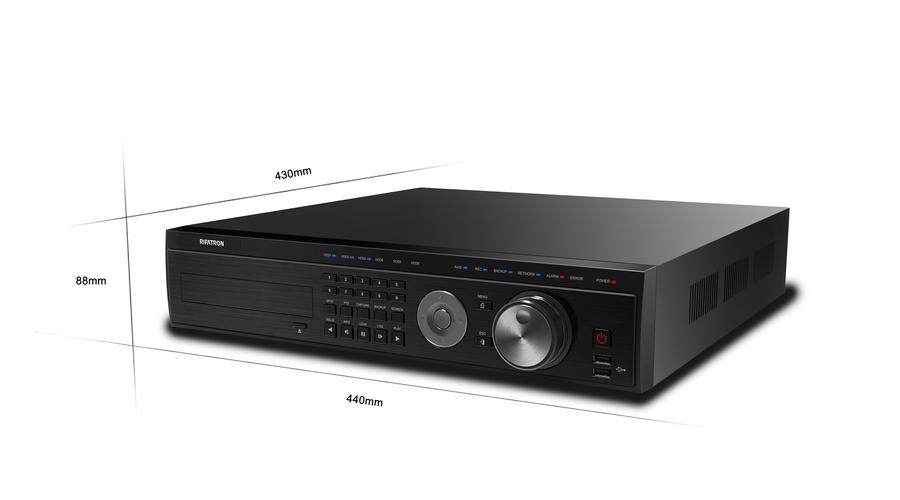

| Dimension:440 x 88 x 430 mm | |
| Certification:CE, FCC, RoHS Compliance |
