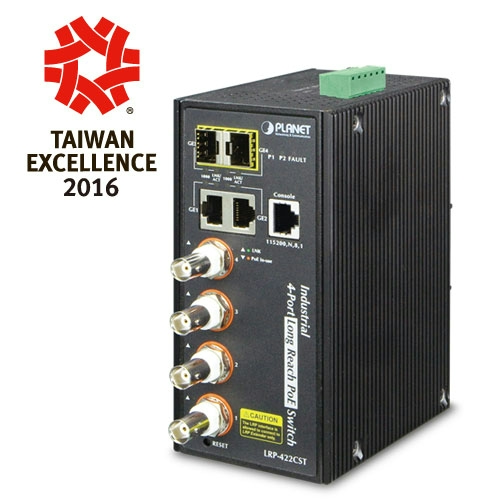

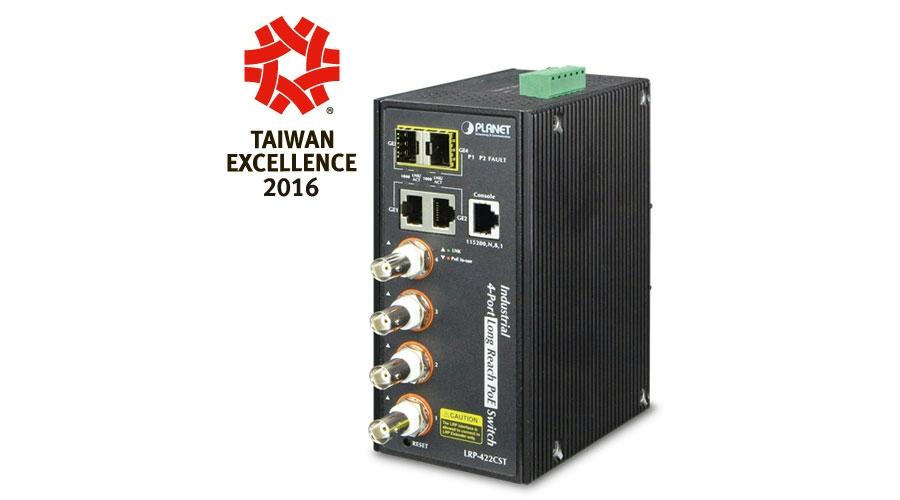

Planet LRP-422CST 4-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP
Ár:
346.612 Ft
(272.923 Ft + ÁFA)
| Gyártó: |
|
| Gyártó cikkszám: | LRP-422CST |
| Elérhetőség: | Rendelhető |
Csatolt dokumentumok
Leírás és Paraméterek
| BNC portok száma | 4 port LRP |
| Ethernet portok száma | 2 port |
| SFP portok száma | 2 port |
| PoE szabvány | 802.3at High power PoE+ - 30W |
| Össz. PoE teljesítmény | 150 W |
| Switch port sebesség | Gigabit Ethernet |
| Menedzselhetőség | Igen |
| Méret | DIN sínre szerelhető |
| Tápellátás | Külső tápegység, nem tartozék! |
| HARDVER TULAJDONSÁGOK | |
| Ethernet Interfész | ■ Copper |
| • 2 x 10/100/1000BASE-T RJ45 | |
| • Auto-negotiation/Auto-MDI/MDI-X | |
| ■ Fiber Optic | |
| • 2 x 100/1000BASE-X SFP slot | |
| • Supports 100/1000Mbps dual mode and DDM | |
| ■ Jumbo Frame | |
| • 10Kbytes with GE1 to GE4 | |
| Long Reach PoE Interfész | ■ Connectivity |
| • 4 x BNC female connectors | |
| • Long Reach PoE over coaxial PSE (Power Source Equipment) | |
| - BNC center pole:DC+/Hi | |
| - BNC shield:DC -/Lo | |
| ■ Power Output | |
| • Per port 48~56V DC, 36 watts (max.) | |
| ■ Total Power Budget | |
| • 150 watts (max.) | |
| ■ Cabling | |
| • Coaxial cable:75 ohm | |
| • RG-6/U cable (Recommended) | |
| ■ Maximum Distance | |
| • Max. 200m with PoE+ output (1,640ft.) | |
| • Max. 400m with PoE output (2,624ft.) | |
| • Max. 1200m without PoE output (3,937ft.) | |
| ■ Long Reach Ethernet Standard | |
| • IEEE 1901 | |
| ■ Modulation Type | |
| • Wavelet-OFDM | |
| ■ Security | |
| • 128-bit AES encryption | |
| ■ Frequency Band | |
| • 2 ~ 28MHz | |
| ■ Performance | |
| RG-6/U Data Rate* LRP-101CE | |
| Distance TX** RX** PoE Output@25 degrees C* | |
| 200m 93.9Mbps 93.5Mbps 21.7W | |
| 400m 90.4Mpbs 90.3Mbps 19.04W | |
| 600m 82.1Mbps 80Mbps 13.5W | |
| 800m 69.9Mbps 69.4Mbps 10.35W | |
| 1000m 52.2Mbps 50.2Mbps 8.01W | |
| 1200m 31.7Mbps 37.8Mbps --- | |
| * The actual data rate and PoE output vary on the quality of the copper wire and environmental factors. | |
| The performance result above is based on the testing via the RG-6/U coaxial cable. | |
| ** TX:The LRP-422CST to the LRP-101CE | |
| RX:The LRP-101CE to the LRP-422CST | |
| ■ Multiple Nodes | |
| • Up to 4 LRP extenders within 1km RG-6/U coaxial cable* | |
| * The actual extender nodes vary on the quality of the copper wire and environmental factors. | |
| ■ LRP Compatibility | |
| • LRP-101CE:1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender | |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Arhitektúra | Store-and-Forward |
| Optikai Switch | 8.8Gbps/non-blocking |
| Fizikai Cím Táblázat | 8K entries |
| Adatmegosztási Tároló | 4.1 megabits |
| Adatfolyam Vezérlés | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Reset Gomb | < 5 sec:System reboot |
| > 5 sec:Factory default | |
| Túlfeszültség védelem | 6KV DC |
| Érintésvédelem | 6KV DC |
| Burkolat | IP30 aluminum case |
| Telepítés | DIN-rail kit and wall-mount kit |
| Csatlakozások | Removable 6-pin terminal block for power input |
| Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 | |
| Riasztás | One relay output for power failure. Alarm Relay current carry ability:1A @ 24V AC |
| LED Kijelző | System: |
| Power 1 (Green) | |
| Power 2 (Green) | |
| Fault Alarm (Red) | |
| Per LRP Port: | |
| LNK/ACT (Green) | |
| PoE In-use (Orange) | |
| Per Gigabit Port: | |
| LNK/ACT (Green) | |
| 1000(Orange) | |
| Méretek (Sz x Mé x M) | 107 x 72 x 152 mm |
| Tömeg | 1,150g |
| Tápigény | 48 to 56V DC |
| Energiafogyasztás | 9.5 watts/32.42 BTU (System on) |
| 165 watts/563.0 BTU (Full loading) | |
| LAYER 2 FUNKCIÓK | |
| Port Kitükrözés | TX/RX/both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged-based VLAN |
| Up to 256 VLAN groups, out of 4094 VLAN IDs | |
| 802.1ad Q-in-Q tunneling | |
| Voice VLAN | |
| Protocol VLAN | |
| Private VLAN (Protected port) | |
| GVRP | |
| Linkek Összevonása | IEEE 802.3ad LACP and static trunk |
| Supports 4 trunk groups with 4 ports for each group | |
| Spanning Tree Protocol | STP/RSTP/MSTP |
| IGMP Snooping | IGMP (v2/v3) Snooping |
| IGMP Querier | |
| Up to 256 multicast groups | |
| MLD Snooping | MLD (v1/v2) Snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
| QoS | 8 mapping IDs to 8 level priority queues |
| - Port number | |
| - 802.1p priority | |
| - 802.1Q VLAN tag | |
| - DSCP field in IP packet | |
| Traffic classification based, strict priority and WRR | |
| Biztonság | IEEE 802.1X port-based authentication |
| Built-in RADIUS client to co-operate with RADIUS server | |
| RADIUS/TACACS+ user access authentication | |
| IP-MAC port binding | |
| MAC filter | |
| Static MAC address | |
| DHCP Snooping and DHCP Option82 | |
| STP BPDU guard, BPDU filtering and BPDU forwarding | |
| DoS attack prevention | |
| ARP inspection | |
| IP source guard | |
| MENEDZSELÉSI FUNKCIÓK | |
| Alap Beállítások | Web browser/Telnet/SNMP v1, v2c |
| Firmware upgrade by HTTP/TFTP protocol through Ethernet network | |
| Remote/Local Syslog | |
| System log | |
| LLDP protocol | |
| SNTP | |
| Biztonsági Beállítások | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II |
| RFC 1215 Generic Traps | |
| RFC 1493 Bridge MIB | |
| RFC 2674 Bridge MIB Extensions | |
| RFC 2737 Entity MIB (Version 2) | |
| RFC 2819 RMON (1, 2, 3, 9) | |
| RFC 2863 Interface Group MIB | |
| RFC 3635 Ethernet-like MIB | |
| MEGFELELŐSÉGI SZABVÁNYOK | |
| Előírási Megfelelőség | FCC Part 15 Class A, CE |
| Hálózati Szabványok | IEEE 1901 Broadband Power Line |
| IEEE 802.3 10BASE-T | |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3ab Gigabit 1000T | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1X Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| RFC 3810 MLD v2 | |
| KÖRNYEZETI TULAJDONSÁGOK | |
| Működés | Temperature:-20 ~ 75 degrees C |
| Relative Humidity:5 ~ 95% (non-condensing) | |
| Tárolás | Temperature:-40 ~ 85 degrees C |
| Relative Humidity:5 ~ 95% (non-condensing) |
